This article outlines the different ways you can create a graphic in Tagboard, customize that graphic, add data elements from our app marketplace to it, go live with your creation, and edit your graphic on the fly!
🎨 Create & Design your Graphic

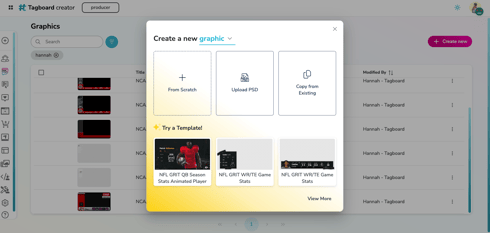

Start by choosing one of the following:

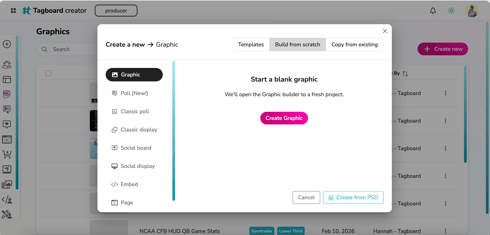

- Create from scratch
- Upload an Adobe Photoshop file
- Choose from our template library
Within the graphic builder, you can choose to add a variety of basic elements:
- Text
- Images
- Videos
- Shapes
- QR Codes
For a breakdown of the different ways to create your graphic, and add and customize elements, feel free to visit Creating a Graphic and Graphics 101.
In addition to these basic elements, there is an assortment of Advanced Elements to enhance your graphic even further:
💡 TIP: Label your graphics with Tags for organization!
💻 Build Your Production

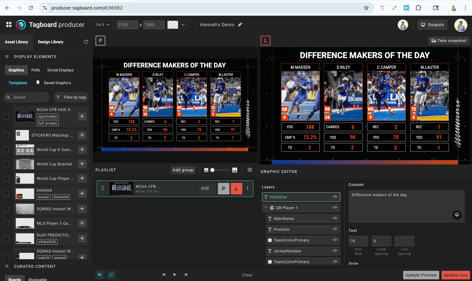

After creating your graphic, head into Producer and create a New Production.
From there, you can simply drag and drop your completed graphic onto your Producer Playlist.

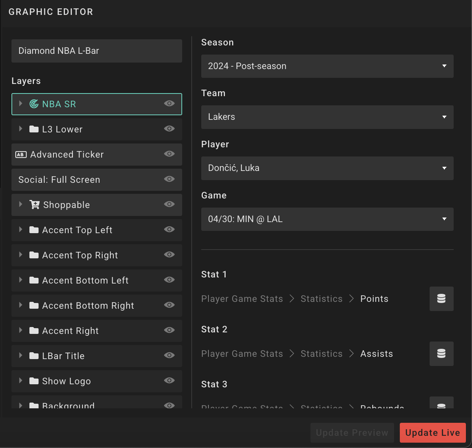

You can make additional changes to your graphic by selecting the element in your playlist and opening up the Graphic Editor. Select a graphic layer, make your edits, then Update Live!
💡 TIP: Want to export the graphic? Click Take snapshot above your live window to save locally on your computer!
🎥 Go Live!

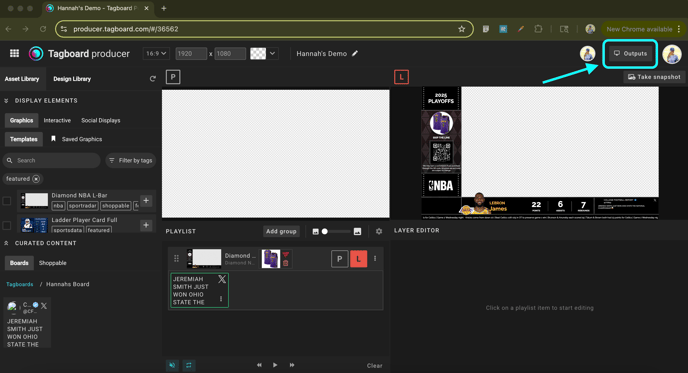

To create a new output link for this Production, select Outputs, give it a title, then create your new display URL.
For a seamless experience, be sure to:
- Use Google Chrome as your web browser
- Configure your Chrome settings to ensure you get sound by visiting chrome://settings/content/sound. Add the below websites to allow audio to play by default:
-
- https://live.tagboard.com
- https://producer.tagboard.com
- https://display.tagboard.com
-
- Follow our additional Live Display Requirements!
